Uzbekistan
Granite
< 700mm
0-5mm, 5-10mm, 10-20mm
250-300 TPH
Running Stably

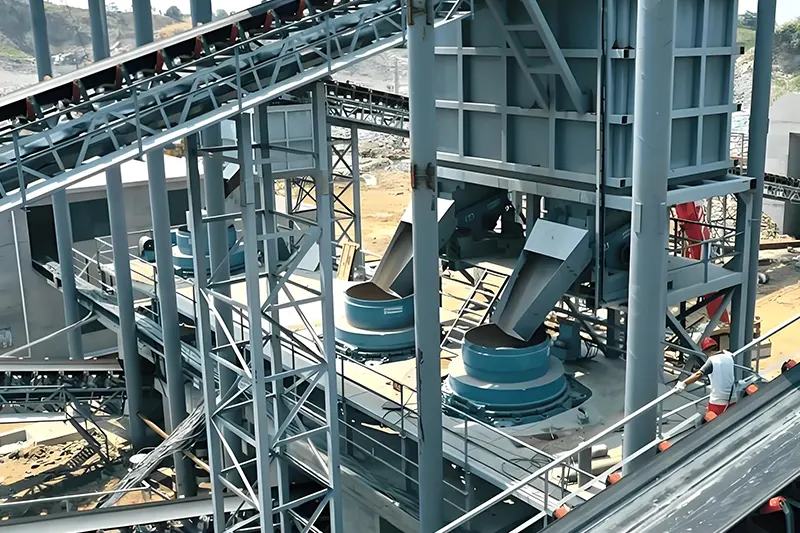

As a key nation along the "Belt and Road" initiative, Uzbekistan possesses abundant mineral resources, including 16 proven large-scale granite deposits. To capitalize on this, our engineering team designed a highly efficient 250-300 TPH crushing circuit. The system utilizes advanced scalping techniques and multi-cylinder hydraulic cone crushers to process the hard granite while minimizing operational wear and energy consumption.

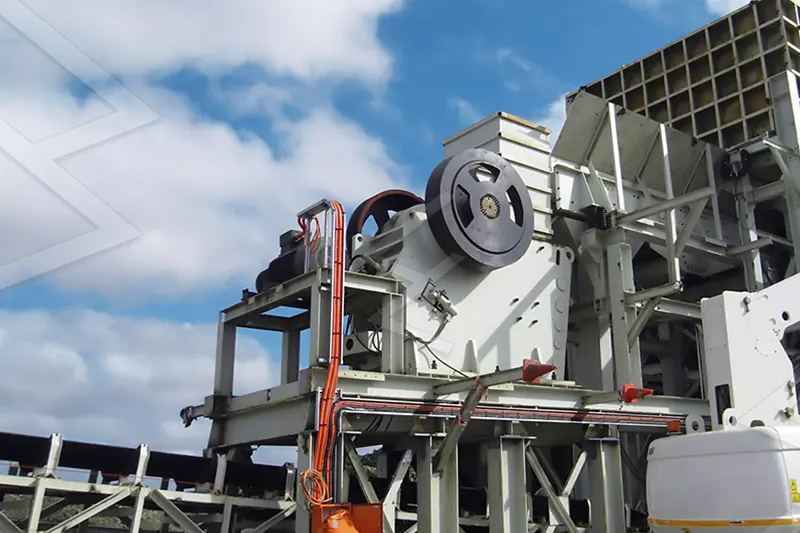

Raw material is fed into a 2F5X1245 Vibrating Feeder. The lower deck and grizzly bars scalp out waste and directly route the 20-100mm fraction to the transit silo, bypassing the primary stage to save energy. Oversize material (>100mm) is processed by the JC840x1100 Jaw Crusher before joining the transit silo.

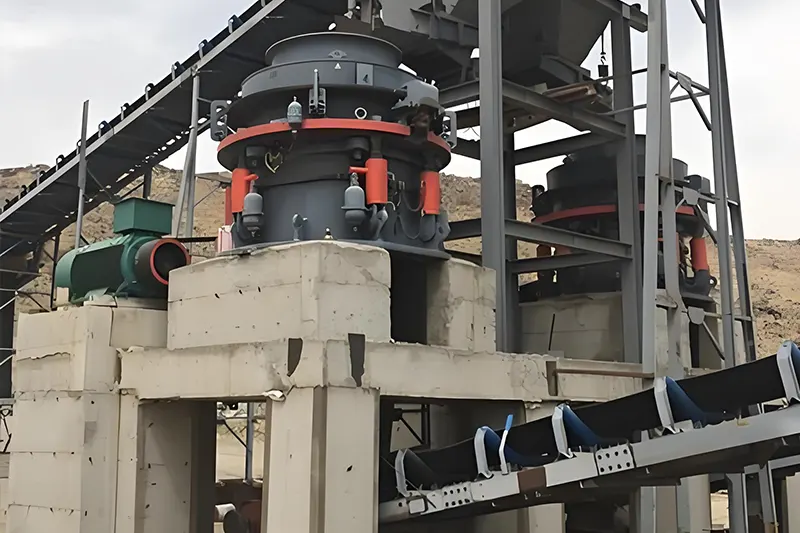

Material from the transit silo is conveyed to an HPT300C Multi-cylinder Hydraulic Cone Crusher for secondary reduction. The discharged material is then graded by a 3YZS1860 Vibrating Screen, separating out compliant 0-5mm, 5-10mm, and 10-20mm final aggregates.
The >20mm oversize fraction from the secondary screen is routed to an HPT300F Multi-cylinder Hydraulic Cone Crusher dedicated to fine crushing. The output passes through a 3YZS2160 Vibrating Screen, ensuring a strict closed-circuit loop and yielding high-quality, cubical end products.
The production line integrates intelligent HPT series multi-cylinder cone crushers and JC series jaw crushers, optimizing both throughput and final particle shape for abrasive hard rock.
| Processing Stage | Equipment Name | Model Specification | Unit Configuration | Core Operational Role |
|---|---|---|---|---|
| Feeding & Scalping | Heavy-Duty Vibrating Feeder | 2F5X1245 | 1 Unit | Continuous feeding and pre-screening of 20-100mm materials. |
| Primary Crushing | European Jaw Crusher | JC840x1100 | 1 Unit | Heavy-duty initial reduction of large granite boulders. |
| Secondary Crushing | Multi-cylinder Hydraulic Cone Crusher | HPT300C | 1 Unit | High-efficiency intermediate lamination crushing. |
| Tertiary Crushing | Multi-cylinder Hydraulic Cone Crusher | HPT300F | 1 Unit | Fine crushing stage to maximize the yield of 0-20mm aggregates. |
| Precision Screening | Circular Vibrating Screen | 3YZS1860 & 3YZS2160 | 1 Set (2 Units) | Multi-deck precise grading for final construction aggregates. |
On-site operation record: The intelligent combination of scalping feeders and multi-cylinder cone crushers significantly reduces the wear rate and processing cost per ton.
"During the equipment selection phase, we conducted thorough comparisons among multiple crusher manufacturers before finalizing our partnership with Liming Heavy Industry. Practical operations have proven that our choice was absolutely correct. Liming's product quality, intelligent process configuration, and overall reliability are truly trustworthy!"
Whether it is hard metallic ore, highly abrasive granite, or ultra-large capacity requirements, Liming Heavy Industry's global backbone engineering team will provide a customized 3D process layout and investment budget estimation within 24 hours.
