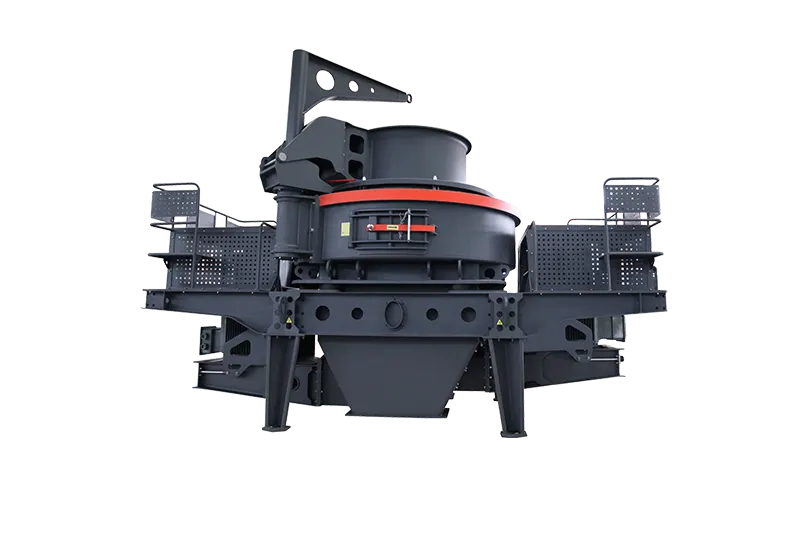

Addressing industrial demands for large-scale, intensive, and eco-friendly manufactured sand production, VSI6X Series Vertical Shaft Impact Crushers represent new-generation tertiary reduction equipment. Integrating four-opening impeller topologies and specialized bearing cylinder sealing structures, this unit prevents oil leakage while maximizing volumetric throughput. Equipped with dual-motor drives and automated thin-oil lubrication, VSI6X enables major aggregate plants to transition toward centralized, high-capacity continuous production.
Engineered for high-capacity fine crushing and aggregate shaping across demanding materials processing sectors.
Processes abrasive river pebbles, quartz, and limestone into premium cubical artificial sand, satisfying high-grade concrete standards.
Provides critical tertiary and quaternary size reduction for iron ore and copper ore circuits, functioning effectively prior to ball mill stages.
Shapes coarse aggregates, eliminating elongated and flaky particles required for highway surface layers and high-speed railway foundations.
Recycles tough metallurgical slag and calcium carbide, leveraging high-velocity kinetic impacts to separate constituent material phases.
Cavity geometry permits rapid transitions between "Rock-on-Rock" and "Rock-on-Iron" kinematics. "Rock-on-Rock" mode utilizes material layer baffles to form dense stone linings, generating highly cubical particles. "Rock-on-Iron" mode optimizes impact block installation angles, maximizing overall crushing ratios.
Impeller architecture incorporates four distinct discharge ports. Compared to traditional three-port designs, this specific configuration significantly increases volumetric throughput and elevates inter-particle collision probabilities within vortex cavities.
Bearing cylinders feature unique exhaust dust-prevention devices and complex mechanical seals. Assembly effectively prevents external dust ingress, completely eliminating chronic lower bearing cover oil leakage issues common in older VSI models.
Lower machine body structural supports transition from traditional grid patterns to open cross structures. This critical spatial modification drastically reduces internal material blockages within bottom discharge channels during high-moisture processing.
Standard configurations include integrated lifting arms sharing axes with main lift points, enabling direct impeller maintenance without external heavy cranes. Hydraulic jacks elevate feed hoppers effortlessly, while lowered guardrails prevent mechanical interference during hopper pivoting.
Intelligent thin-oil lubrication stations incorporate air-cooling systems managed via PLC and smart instrumentation. Setup guarantees automated temperature regulation, providing optimal thermal conditions for continuous high-speed bearing operation.
Equipment supports full-center feeding or center-feed combined with annular cascade feeding. Material entering feed hoppers drops through distributor plates, dividing flow between central impeller entry and peripheral free-fall zones.
Dual motors drive main shafts into high-speed rotation. Material entering four-opening impellers undergoes massive centrifugal acceleration before ejecting outward into crushing chambers at extreme velocities.
Ejected material violently strikes free-falling cascade material. Kinetic energy transfers instantly, causing primary particle fragmentation before combined mass travels toward peripheral cavity boundaries.
Rocks impact stationary material linings or metallic impact blocks, rebounding toward cavity ceilings. Deflecting downward, returning particles intersect newly ejected streams, forming continuous, high-density crushing curtains before gravity pulls finished sand through lower discharge ports.
