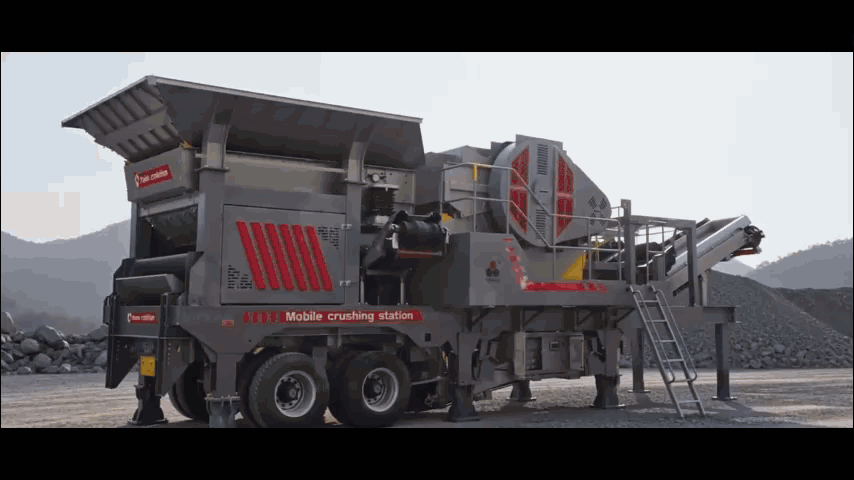

The NK Series is a highly integrated, modular crushing system engineered for rapid deployment and maximum operational flexibility. Built on a reinforced straight-beam chassis with adjustable fixed legs, it completely eliminates the need for concrete foundations, drastically reducing site preparation time and infrastructure costs.
Engineered to adapt seamlessly to demanding environments, from remote mining operations to constrained urban recycling sites.
Process abrasive quarry stone like granite, basalt, and quartz into premium aggregate directly at the extraction point.
Ideal for primary and secondary crushing of metallic ores, significantly reducing downstream conveyor and haulage costs.
Follows the progress of highway and railway construction, processing sub-base materials precisely where they are needed.
Transforms concrete rubble, bricks, and asphalt into reusable secondary aggregates on tight, urban jobsites.
The standardized structural design allows for rapid interchangeability between primary, secondary, and tertiary modules, significantly reducing lead times and allowing for flexible site configurations.
Equipped with heavy-duty adjustable fixed legs (optional hydraulic legs available). By simply compacting the installation surface, the plant can be anchored securely without pouring concrete foundations.
The vibrating screen utilizes a centralized thin-oil self-lubrication system. This ensures optimal thermal management and extends the lubrication maintenance cycle to up to 8 months, cutting labor and oil costs.
External belt conveyors are pre-installed and highly integrated. This eliminates the need for on-site cranes and extensive structural assembly, allowing the unit to transition to production within 24 hours of arrival.
An integrated electromechanical automation system with a touchscreen interface ensures precise monitoring, fault diagnostics, and dynamic adjustments during continuous operation.
Crushers (such as the PE3040 jaw) are tailored specifically for the mobile chassis, featuring higher crushing ratios, faster discharge port adjustments, and overall lower vibration transmission.
Raw material is loaded into the heavy-duty hopper by an excavator or loader. The integrated vibrating feeder uniformly conveys the material to the primary crushing module.
Based on the selected configuration, the material undergoes size reduction in the tailored jaw or cone/impact crusher. The straight-beam chassis absorbs operational vibrations, ensuring stability.
Crushed material is transported via the integrated belt conveyor to the vibrating screen. The thin-oil lubricated screen separates the aggregate into 2, 3, or 4 specified product sizes.
Oversized materials that do not meet the specification are automatically routed back to the crushing module via a return conveyor, creating a highly efficient closed-circuit production loop.
