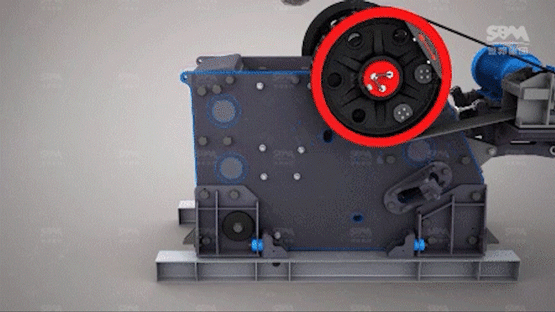

The C6X Series Jaw Crusher is a high-performance primary size-reduction machine engineered for hard and highly abrasive materials. Bypassing traditional welded assemblies, it utilizes a detachable, non-welded bolt-together frame that eliminates thermal stress concentration. Equipped with an optimized crushing cavity, a dual-wedge adjustment device, and an integrated motor mount, it delivers continuous capacities ranging from 80 to 1510 t/h while significantly extending the fatigue life of core structural components.
Engineered to process massive run-of-mine materials with compressive strengths up to 300MPa across rigorous industrial sectors.
Acts as the primary crushing node for highly abrasive materials like granite, basalt, and river pebbles, effectively managing large feed sizes up to 1200mm.
Provides reliable coarse reduction for iron ore and copper ore beneficiation plants, ensuring continuous throughput for downstream secondary crushers.
Processes raw limestone and high-hardness refractory feedstocks, maintaining high operational availability through premium cast and forged components.
Capable of handling tough metallurgical slag, utilizing its elastic limit shock-absorbing device to protect the foundation from severe impact loads.
The frame separates the side, front, and rear walls, securing them entirely with high-strength bolts rather than welds. This design prevents welding-induced stress concentrations and creates a more compact, reliable structure.
The crushing cavity geometry has been refined to accept larger feed sizes. Combined with a large stroke and a steep toggle plate angle, the bottom of the cavity achieves a larger stroke, significantly increasing material throughput and crushing efficiency.
Replaces outdated shim-plate systems with a dual-wedge discharge opening adjustment device. Available in both mechanical and hydraulic configurations, it makes Closed Side Setting (CSS) adjustments simpler, safer, and highly time-efficient.
Rigid anchor bolt connections are replaced by elastic limit blocks and rubber shock absorbers. This effectively absorbs peak vibration loads, reducing mutual impact between the crusher and the concrete foundation, thereby lowering fatigue damage.
The motor base is fixed directly onto the crusher frame, saving significant installation space. A pin-hinged belt tensioning scheme ensures that mechanical power transmission remains stable and V-belt adjustments are straightforward.
Core components like the front/rear walls, moving jaw, and bearing housings utilize alloy cast steel, while the main shaft is forged for superior mechanical strength. It incorporates international brand bearings and couplings (SKF, FAG, KTR), with large plates processed on gantry CNC milling machines.
The electric motor serves as the primary power source, transmitting rotational torque to the grooved pulley via heavy-duty SPC V-belts.
The driven pulley rotates the heavy forged eccentric shaft. The specific eccentricity forces the moving jaw body to perform a continuous pendulum motion—moving back, forth, up, and down.
As the moving jaw plate swings toward the fixed jaw plate, the volume of the V-shaped crushing cavity decreases. The trapped rock is subjected to immense compressive and splitting forces, causing it to fracture.
When the moving jaw retreats under the action of the eccentric shaft and return spring, the cavity volume expands. The crushed materials drop through the lower discharge opening via gravity, completing the continuous production cycle.
