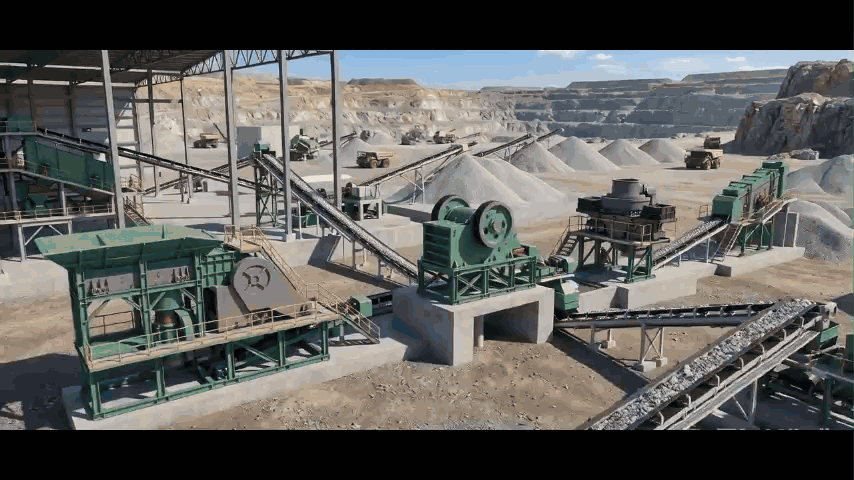

The SMP Series Modular Crushing Plant is a semi-permanent, bolt-together rock processing station designed to replace traditional concrete-intensive stationary lines. Featuring standardized structural steel modules, pre-fabricated maintenance platforms, and integrated heavy-duty chute-work, this series minimizes site-specific civil engineering overhead and shortens on-site erection timelines by up to 50%.
Engineered for commercial quarries, metallic ore processing, and strategic aggregate hubs where fast site erection and high structural stability are required.
Provides a rigid, high-capacity stationary setup for abrasive hard rock reduction without the long lead times of concrete pouring.
Acts as a reliable primary or secondary crushing stage for iron, copper, and gold mineral processing lines, optimizing structural load transfers.
Supplies high-volume aggregate for mega-scale dam, airport, and railway concrete batching setups, offering fast mechanical assembly.
Perfect for operations spanning 3 to 5 years; the entire steel structure can be unbolted, packed, and re-erected at a new site with minimal structural asset loss.
All structural frames, heavy pillars, and sub-assemblies are pre-drilled and machined at the factory. On-site installation relies entirely on high-strength bolt connections, completely eliminating complex on-site welding and tracking errors.
By utilizing wide-flange H-beam columns and optimized structural base-plates, the system significantly reduces concrete foundation thickness and volume. Only simple concrete strip footings or flat pad foundations are required.
Inter-stage rock transfer chutes and bypass hoppers are pre-fabricated with standard bolt-on wear liners. This ensures optimized material flow angles, reduces particle impact degradation, and prevents material accumulation or blockage.
The modular steel blocks, walkways, and support legs are carefully dimensioned to fit inside standard 40ft containers. This drastically lowers international ocean freight costs and simplifies overland logistics.
Every functional module (crushing, screening, feeding) comes complete with integrated galvanised steel gratings, toe-boards, and handrails. Operators gain immediate, multi-level 360-degree safe maintenance clearance.
The standardized structural interfaces permit seamless future expansions. Operators can insert additional secondary cone modules or tertiary sizing screens into the existing line layout without re-designing adjacent modules.
Large run-of-mine materials enter the heavy-duty modular steel hopper. The vibrating feeder separates the natural fines via a grizzly bar section and smoothly routes the primary mass into the jaw crusher module.
The primary or secondary crusher reduces rock sizing. The kinetic energy and massive crushing impacts are completely absorbed and distributed down through the pre-engineered H-beam steel support columns directly to the footings.
Crushed rocks travel via a heavy-duty conveyor module and discharge through pre-lined gravity chutes onto the high-capacity vibrating screen block. Multi-deck separation splits the aggregate into defined dimensional products.
Finished fractions are discharged directly to stock-piles via standard product conveyors. Oversized fractions are captured by the return chute module and automatically routed back for closed-circuit secondary reduction.
