Developed specifically for artificial sand processing circuits, XSD Series Sand Washing Machines operate as advanced wheel-bucket washing equipment. Integrating domestic and international washing technologies, units execute cleaning, dewatering, and size classification within single compact footprints. Designed to complement modern sand making machines, equipment effectively processes both fine and coarse granular materials, delivering supreme cleanliness levels vital for premium construction aggregate production.
Provides critical material washing and impurity removal across heavy construction and mineral processing sectors.
Removes rock dust and soil contamination from manufactured sand, guaranteeing high-strength raw materials for commercial concrete batching.
Executes deep cleaning for high-purity quartz sand and specialized dry mortar ingredients, preventing chemical interference from impurities.
Prepares high-quality, clean limestone particles required for efficient flue gas desulfurization (FGD) systems.
Impeller drive bearing mechanisms remain completely isolated from water flows and submerged material zones. Structural separation drastically lowers failure rates, preventing premature bearing destruction caused by water ingress, sand abrasion, or chemical contamination.
Consolidates material washing, gravitational dewatering, and granular classification into one continuous operation. Simplified machine architecture reduces overall plant footprint while minimizing potential mechanical failure points.
Peak processing capacity reaches 180 TPH per unit. Optimized bucket mesh designs ensure minimal loss of valuable fine sand and stone powder during intense washing cycles, maximizing final product yield.
Features novel sealing architectures integrated with fully enclosed oil-bath drive systems. Advanced transmission layout guarantees high-performance kinetic transfer while operating silently under heavy continuous loads.
Equipped with adjustable overflow weir plates. Operators fine-tune water levels and overflow discharge rates to match specific raw material contamination levels, optimizing water consumption.
Engineered for modern environmental compliance. Low power consumption profiles combine with highly efficient water utilization geometries, reducing overall operational costs and environmental impact.

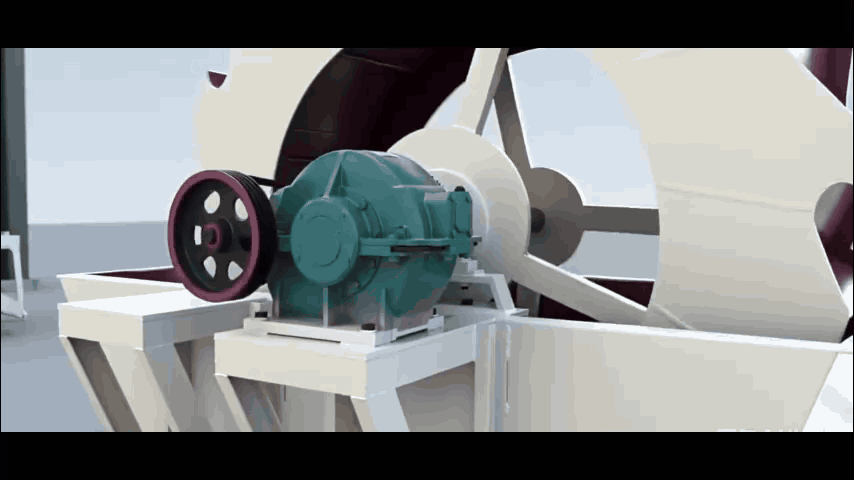

Electric motors transfer kinetic energy through V-belts, speed reducers, and gear assemblies. Gear reduction drives primary wheel-bucket impeller into slow, continuous rotation.
Raw sand and gravel enter washing trough via feeding chutes. Rotating impeller blades force material particles to tumble and grind against one another continuously. Friction strips away surface dirt and impurities.
Intense internal grinding action systematically destroys microscopic moisture vapor layers enveloping individual sand grains. Stripping vapor layers drastically accelerates subsequent dewatering processes.
Continuous clean water injection creates strong directional currents. Low-gravity foreign matter and suspended dirt wash out via overflow weir plates. Finally, rotating impeller blades lift cleaned sand upward, discharging processed aggregate directly into output chutes.
