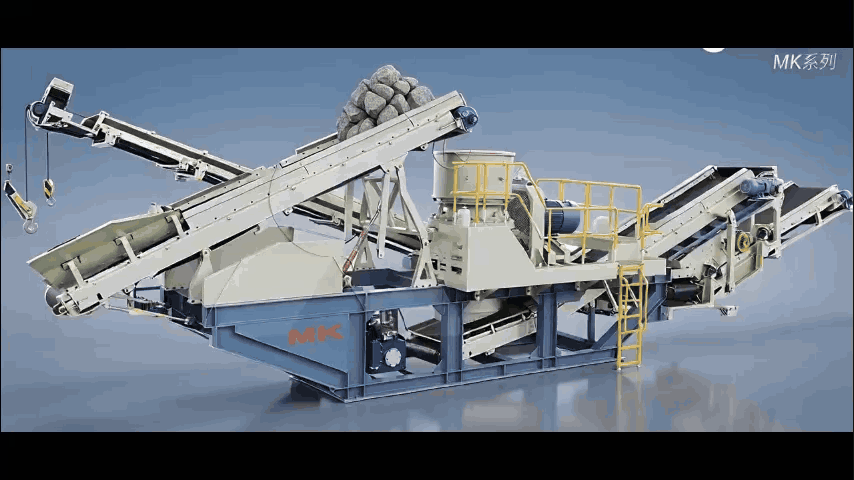

The MK Series is an integrated, skid-mounted semi-mobile crushing and screening plant engineered to bridge the gap between high-capacity stationary installations and low-throughput mobile units. Built on a heavy-duty structural steel sleigh base, it co-locates the crusher, sizing screens, and discharge conveyors on a single frame, enabling high-capacity processing up to 800 t/h without pouring permanent concrete foundations.
Designed for rapid deployment in large-scale quarrying, mining, and aggregate processing where civil engineering must be minimized.
Processes large-size run-of-mine hard rocks like granite and basalt into standardized construction aggregates, scaling up to 800 t/h.
Positioned directly near the mining face to run primary size reduction for metallic and non-metallic ores, minimizing heavy truck haulage distances.
Ideal for rapid-advancement railway, dam, and highway projects requiring immediate on-site material processing without standard civil construction delays.
An integrated compact footprint allows high-capacity recycling of concrete rubble and industrial waste within heavily constrained metropolitan jobsites.
The specialized structural steel chassis is optimized for high static and dynamic load distributions, safely housing heavy-duty jaw or cone crushers to deliver stationary-level outputs up to 800 t/h.
By combining the feeder and primary crusher on a lowered, integrated chassis, the required material dump wall height is reduced, directly cutting site excavation and civil engineering costs.
The "sleigh" style skid base requires only a compacted, level ground surface for operation. It spreads machine loads evenly, bypassing concrete pouring and dramatically shortening the site setup phase.
Configurations under 300 t/h can be transported via standard 40ft High Cube containers or moved as a single flatbed load. Dedicated crane lifting points enable rapid on-site loading and relocation.
Equipped with a built-in electrical control cabinet supporting sequential one-button start/stop interlocks. Can be integrated into a broader centralized plant control loop with touchscreen diagnostics.
Features integrated steel maintenance platforms, safety handrails, and optimized inspection clearance around critical wear components. Automated lubrication options minimize routine uptime interventions.
Run-of-mine materials are discharged into the low-profile hopper. The integrated vibrating feeder screens out undersized fines while consistently delivering the coarse mass into the main crusher.
The core crushing unit (Jaw, Cone, or Impact depending on module choice) reduces the material size. The heavy structural steel frame dampens harmonic vibrations, protecting surrounding assemblies.
Crushed aggregates pass directly onto the co-located high-frequency vibrating screen. Materials are separated into precise, distinct sizing fractions using multi-deck configurations.
Sized final aggregates are drawn away by the built-in, pre-folded belt conveyors. Oversized material can be redirected back to the primary feed via an optional closed-circuit loop to maintain target sizing rules.
