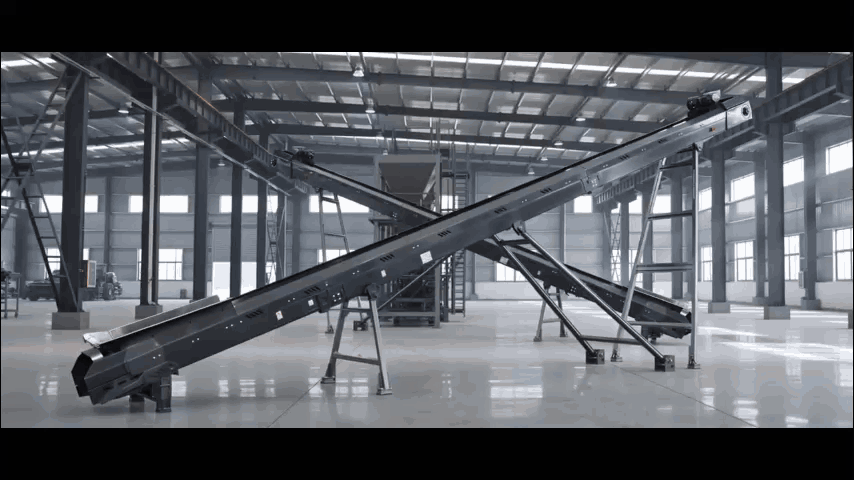

Engineered by summarizing decades of bulk material handling, design, manufacturing, and installation experience, B6X Series Belt Conveyors represent ideal technological upgrades for traditional transport systems. Functioning as friction-driven continuous transport mechanisms, equipment routes materials along designated transport lines from initial feeding points to final discharge zones. Upgraded structural rigidity and advanced drive configurations meet stringent modern industrial demands across high-tonnage processing plants.
Provides continuous, reliable transfer routes for loose bulk materials across diverse industrial sectors.
Transfers crushed metallic ores and aggregate rocks between crushing, screening, and washing circuits efficiently.
Routes raw coal and processed fuel feeds across massive storage yards directly into power plant boiler silos.
Handles varied chemical powders, cement clinker, and industrial raw materials maintaining continuous plant workflow.
Manages high-volume loading and unloading operations for bulk carriers, adapting to specialized density requirements.
Replaces conventional channel steel and flimsy idler frame combinations. B6X utilizes specialized C-section steel equipped with modular side guards. Structural modification significantly enhances overall frame rigidity, mechanical safety, and aesthetic profile.
Addresses poor stability and bolt loosening issues inherent in legacy designs. Employs inverted-V ("splayed") leg geometry combined with three-link installation structures. Configuration delivers supreme stability while eliminating excessive bolt fastening, drastically simplifying field assembly.
Superior frame rigidity permits long-distance head frame integration. Design increases material stockpile radius to 1.5-2.0 times that of legacy models. Generates optimal gravity-drop clearance and prevents mechanical collision damage from wheel loaders during stockpile reclamation.
Replaces traditional motorized pulleys (electric drums) prone to overheating and premature failure under high-power transmission loads. Integration of high-grade cycloidal reducers ensures vastly improved operational stability, thermal dissipation, and simplified maintenance procedures.
Head, tail, and intermediate frames connect via advanced bolt and taper-bevel mechanisms. Finite Element Analysis (FEA) dynamic simulation validates overall stress distribution, guaranteeing reliable performance under complex loading conditions. Modular side guards shorten installation cycles.
Belts, idlers, motors, and reducers sourced strictly from recognized international brands. Architecture supports upgrades to semi-mobile or fully mobile configurations. Factory accommodates specialized environmental builds including cold-resistant, anti-corrosive, or high-temperature variants.
Conveyor belt acts as primary traction and load-bearing component. Belt routes around driving drums and tensioning drums, forming continuous endless loop architecture.
Upper and lower idler sets support entire belt span, strictly limiting downward deflection and sag. Mechanical tensioning devices provide continuous physical tension required for steady operational tracking.
Drive units rotate driving drums. Frictional resistance generated between rotating drum surfaces and inner belt layers transfers kinetic energy, propelling belt forward steadily.
Bulk materials fed onto upper belt surface travel synchronously with belt movement. Payload moves seamlessly from loading zones until reaching terminal drum points for gravitational discharge.
