Jilin, China
Andesite (High-Hardness Igneous Rock)
Run-of-mine Andesite Boulders
0-5mm, 5-10mm, 10-20mm, 20-31.5mm
1000-1200 TPH
Running Stably

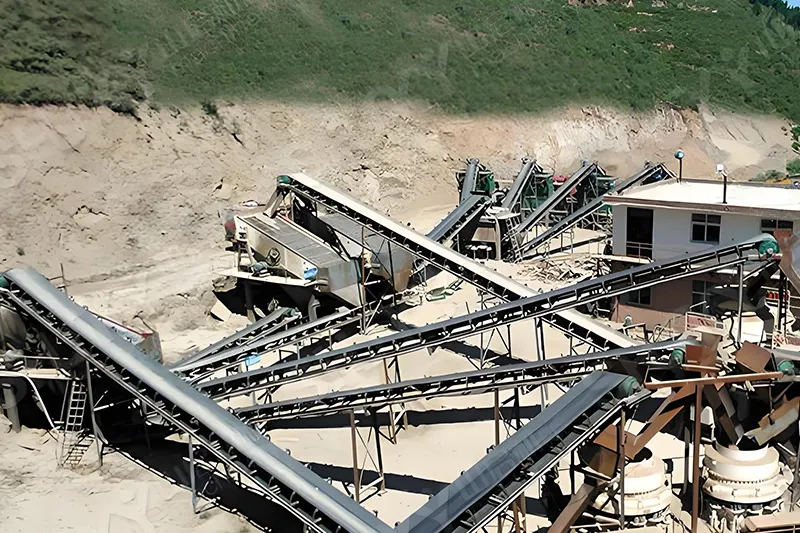

Andesite is a neutral-to-acidic igneous rock with a complex mineral composition (including plagioclase, hornblende, and quartz), known for its extreme hardness and abrasive nature. To meet the rigorous demands of supplying premium aggregates to high-end concrete batching plants in Jilin, our engineering team designed a robust, mega-capacity 1000-1200 TPH dry-process production line, ensuring continuous high yield and low wear-part consumption.

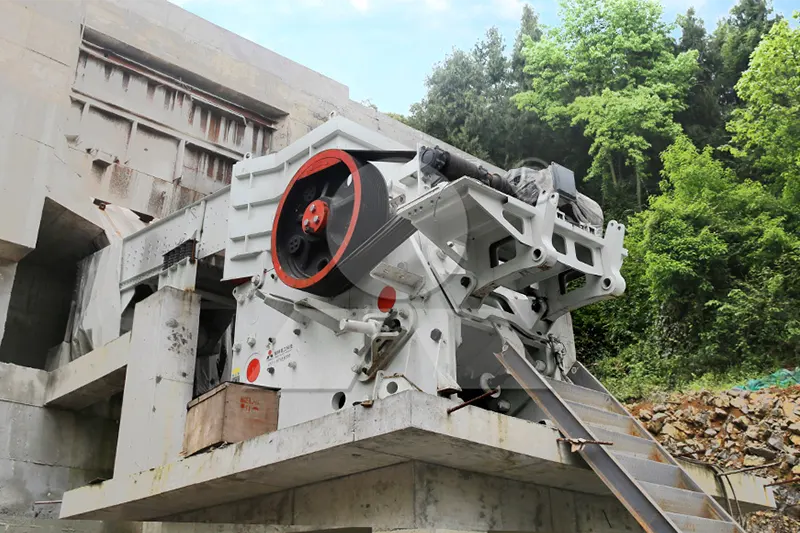

The processing begins with an F5X2060 Heavy-Duty Vibrating Feeder, which continuously supplies massive andesite boulders into the C6X180 Jaw Crusher. Featuring a customized V-shaped crushing chamber, the C6X series maximizes the feed acceptance size and primary throughput, eliminating traditional bottleneck issues in hard rock processing.
The primary crushed material is conveyed to the HST500 Single-Cylinder Hydraulic Cone Crusher. This machine utilizes advanced lamination crushing principles to efficiently break down the abrasive andesite, delivering exceptional reduction ratios while maintaining automated overload protection.
The entire circuit operates on an eco-friendly dry process. The final crushed material is routed through large-scale vibrating screens to be accurately graded into 0-5mm, 5-10mm, 10-20mm, and 20-31.5mm high-quality aggregates, perfectly meeting the strict gradation requirements of infrastructure concrete.
The production line is anchored by Liming Heavy Industry's "Golden Combination" of flagship equipment, meticulously selected to withstand extreme loads and abrasive wear.
| Processing Stage | Equipment Name | Model Specification | Unit Configuration | Core Operational Role |
|---|---|---|---|---|
| Heavy-Duty Feeding | Grizzly Vibrating Feeder | F5X2060 | 1 Unit | Continuous high-tonnage feeding and efficient pre-screening. |
| Primary Crushing | Advanced Jaw Crusher | C6X180 | 1 Unit | Ultra-high capacity primary reduction with V-shaped chamber for hard rock. |
| Secondary Crushing | Single-Cylinder Hydraulic Cone Crusher | HST500 | 1 Unit | High-efficiency lamination crushing, ensuring stable intermediate output. |
| Precision Screening | Heavy-Duty Vibrating Screen | Customized S5X Series | Multiple Units | Multi-deck precision grading for four final aggregate specifications. |
Setting the industry standard for mega-capacity hard rock crushing, focusing on structural durability and minimized installation overhead.
"As veterans in the aggregate industry, we are deeply aware of the pain points associated with processing hard igneous rock. After multiple rounds of scheme comparisons and on-site inspections, we finalized the 'Golden Combination' of Liming's F5X feeder, C6X Jaw, and HST Cone crusher. Their equipment not only delivers phenomenal throughput but the integrated design significantly compressed our project timeline. The full-lifecycle service and tailored operational strategies they provided have firmly secured our profitability and long-term stability."
Whether it is hard metallic ore, highly abrasive granite, or ultra-large capacity requirements, Liming Heavy Industry's global backbone engineering team will provide a customized 3D process layout and investment budget estimation within 24 hours.
